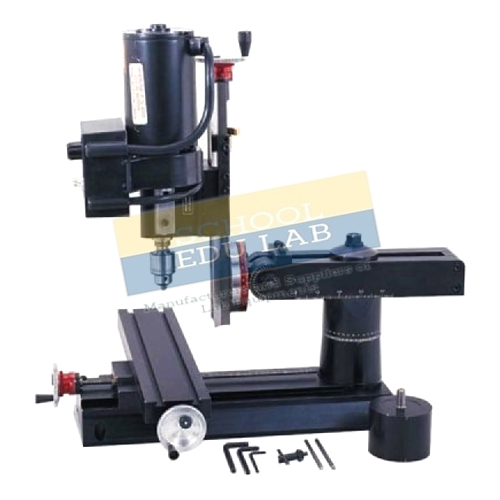

8 Directional Vertical Milling Manufacturer,Supplier and Exporter
Product Code : SEL-CTM-11628
Quick Answer: With a 70 x 330 mm table and a spindle speed of 70–2800 rpm, continuously variable by electronic speed control, the 8 Directional Vertical Milling machine is a compact vertical mill for milling practice.
Last updated: October 2026
Key Features
- Table 70 x 330 mm with 2 T-slots
- Travel X 229 mm, Y 178 mm, Z 137 mm
- Spindle 70–2800 rpm, continuously variable
- 90 V DC motor with electronic speed control
- Accepts any input from 100 V AC to 240 V AC, 50 or 60 Hz
- 10 mm hole through spindle; 3/4-16 TPI spindle nose thread
Technical Specifications
| Specification | Value |
|---|---|
| Hole through spindle | 10 mm |
| Spindle nose thread | 3/4-16 T.P.I. |
| Max. clearance, table to spindle | 229 mm |
| Throat | Adjustable |
| Table size | 70 x 330 mm |
| Hold-down provision | 2 T-slots |
| Travel X / Y / Z | 229 / 178 / 137 mm |
| Motor | 90 V DC with electronic speed control |
| Input supply | 100 V AC to 240 V AC, 50 or 60 Hz |
| Spindle speed | 70–2800 rpm, continuously variable |
About This Product
The motor's electronic speed control converts any input from 100 V to 240 V AC at 50 or 60 Hz, so the same machine works on different mains supplies. An adjustable throat and up to 229 mm clearance between table and spindle give room for work of different heights, while 2 T-slots provide hold-down on the table. It is a small vertical mill for milling practice in vocational and engineering workshops.
Frequently Asked Questions
What power supply does it need?
Any input from 100 V AC to 240 V AC at 50 or 60 Hz; the electronic speed control converts it for the 90 V DC motor.
How far does each axis travel?
X-axis travel is 229 mm, Y-axis 178 mm and Z-axis 137 mm, with up to 229 mm clearance between table and spindle.
