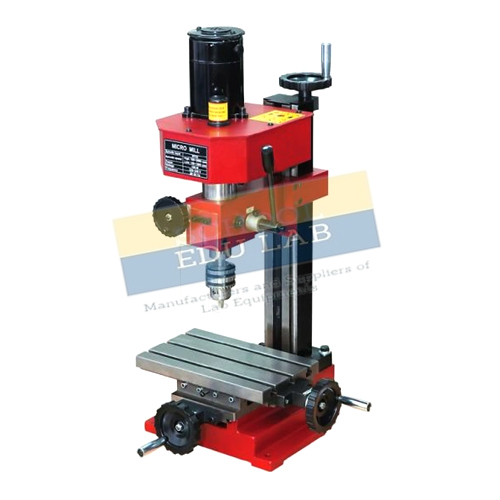

CNC Micro Mill Manufacturer,Supplier and Exporter
Product Code : SEL-CTM-11627
Quick Answer: A desktop machining system, the CNC Micro Mill has a 1/4 HP spindle running at 1100–11000 rpm and 200 oz-in stepping motors, and machines forms in wood, plastic, aluminium or steel.
Last updated: October 2026
Key Features
- 1/4 HP spindle motor, 1100–11000 rpm, belt and pulley drive
- 200 oz-in stepping motors with electronic chopper driver unit
- Travel X 300 mm, Y 146 mm, Z 153 mm
- Ground steel sliding ways with adjustable tapered brass gibs
- Hard anodised aluminium table; 1/2 in (12.7 mm) 20 pitch Cr-Mo lead screws
- Universal standard G-code import
Technical Specifications
| Specification | Value |
|---|---|
| Spindle motor | 1/4 HP |
| Spindle speed | 1100–11000 rpm |
| Drive | Pulley set with drive belt |
| Stepping motors | 200 oz-in |
| Driver | Electronic chopper driver unit |
| Travel X / Y / Z | 300 / 146 / 153 mm |
| Rapid travel | 30 in/min |
| Stepping resolution | 0.003 mm |
| Mechanical repeatability | 0.01 mm |
| Ways | Ground steel sliding ways, adjustable brass gib; box way Z-axis with ground steel plate and tapered brass gib |
| Table | Hard anodised aluminium |
| Lead screws | 1/2 in (12.7 mm), 20 pitch, Cr-Mo |
| Collet | One 3 mm, 4 mm or 6 mm collet with collet closer |
| Supplied with | Input/output port, control software interface, printer cable, power cable |
| Optional | 4th axis amplifier and port |
About This Product
At desktop size, this micro mill gives students a complete CNC milling set-up: it comes with its driver unit, control software interface, input/output port and cables, and imports standard G-code. Ground steel ways with tapered brass gibs, a stepping resolution of 0.003 mm and mechanical repeatability of 0.01 mm suit careful small-part work in wood, plastic, aluminium or steel, and a 4th axis can be added as an option. Buyers in Tanzania, Portugal, Brunei, Paraguay, Haiti and Egypt can send an export enquiry for the CNC Micro Mill.
Frequently Asked Questions
Which materials can the CNC Micro Mill machine?
Wood, plastic, aluminium or steel, cut by a 1/4 HP spindle with a speed range of 1100–11000 rpm.
What is included in the complete system?
The micro mill with spindle motor, pulley set and drive belt, electronic chopper driver unit, input/output port, 200 oz-in stepping motors, one 3, 4 or 6 mm collet with collet closer, control software interface, printer cable and power cable. A 4th axis amplifier and port are optional.
