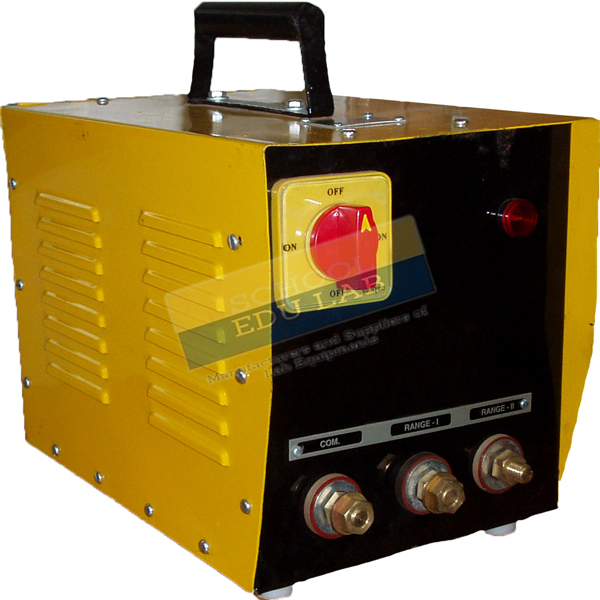

ARC Welding Transformer Manufacturer,Supplier and Exporter
Product Code : SEL-WEAWLM-11534
Quick Answer: Intended for general purpose fabrication and maintenance work, the ARC Welding Transformer is an air-cooled, moving coil type AC stick welding power source offered in 150 Amp and 200 Amp models.
Last updated: October 2026
Key Features
- 150 Amp and 200 Amp models, both with 60% duty cycle
- AC and stick welding process
- Air-cooled power source
- Moving coil type design
- Open circuit voltage (OCV) 70/80/100
- Low spatter, low maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Models | 150 Amp, 200 Amp |
| Welding current range | 75-150 A (150 Amp model); 50-200 A (200 Amp model) |
| Supply | 230 V (150 Amp model); 230/400 V (200 Amp model) |
| Phase | 1 (150 Amp model); 1/2 (200 Amp model) |
| Duty cycle | 60% (both models) |
| Electrode size | SWG 12-10 (150 Amp model); SWG 12-8 (200 Amp model) |
| Dimensions (L x W x H) | 22" x 11" x 13" (150 Amp model); 25" x 14" x 18" (200 Amp model) |
| Open circuit voltage | 70/80/100 |
| Cooling | Air cooled |
About This Product
A welding transformer steps the mains supply down to the low-voltage, high-current output that stick electrodes need. In a fabrication or maintenance training bay, the 150 Amp model runs on a 230 V single-phase supply, while the 200 Amp model accepts 230/400 V and takes electrodes up to SWG 8. Both models are air cooled and rated at a 60% duty cycle. The ARC Welding Transformer can be exported to Niger, Seychelles, Grenada, Jamaica and Sudan.
Frequently Asked Questions
How do the 150 Amp and 200 Amp models differ?
The 150 Amp model has a 75-150 A current range on a 230 V, 1-phase supply and takes SWG 12-10 electrodes. The 200 Amp model covers 50-200 A on 230/400 V, 1/2 phase, with SWG 12-8 electrodes.
What welding process does it support?
It is an AC power source for stick welding, with an open circuit voltage of 70/80/100.
