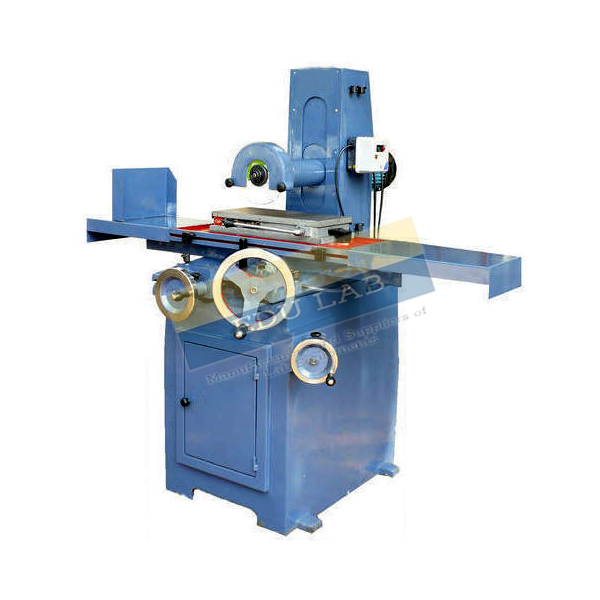

High Precision Surface Grinder Manufacturer,Supplier and Exporter
Product Code : SEL-WEAWLM-11543
Quick Answer: For grinding flat surfaces in machine-shop training, the High Precision Surface Grinder has a 225 x 450 mm table, a 200 x 13 x 31.75 mm wheel running at 2800 rpm and 0.01 mm vertical feed graduation.
Last updated: October 2026
Key Features
- Working surface of the table: 225 x 450 mm
- Grinding wheel: 200 x 13 x 31.75 mm (diameter x width x bore)
- Spindle speed: 2800 rpm
- Vertical feed graduation: 0.01 mm
- Maximum height from table to grinding wheel: 275 mm
- Applications: automobile, electronic and electrical industries
Technical Specifications
| Specification | Value |
|---|---|
| Table working surface | 225 x 450 mm |
| Grinding wheel (D x W x bore) | 200 x 13 x 31.75 mm |
| Spindle speed | 2800 rpm |
| Vertical feed graduation | 0.01 mm |
| Max. height, table to wheel | 275 mm |
| Recommended motor | 0.75 kW / 1 hp |
| Weight of machine | Approx. 800 kg |
About This Product
A surface grinder moves the workpiece beneath a spinning wheel to produce a flat, finely finished face. On this machine the vertical feed is graduated in 0.01 mm steps, and a clearance of up to 275 mm between table and wheel limits the height of work that can be ground. The recommended motor is 0.75 kW (1 hp), and the machine weighs approx. 800 kg. Buyers in Cabo Verde, Belarus, the United Arab Emirates, Indonesia and Honduras can send an export enquiry for the High Precision Surface Grinder.
Frequently Asked Questions
What size grinding wheel does it use?
A 200 x 13 x 31.75 mm wheel (diameter x width x bore), running at a spindle speed of 2800 rpm.
How large a workpiece can it take?
The table working surface is 225 x 450 mm and the maximum height from table to grinding wheel is 275 mm.
Related: Welding Equipment and Workshop Lab Machine, Pillar Drill Machine, Hydraulic Steel Worker, Electric Shear.
For a quotation on the High Precision Surface Grinder, contact School Educational Instrument.
