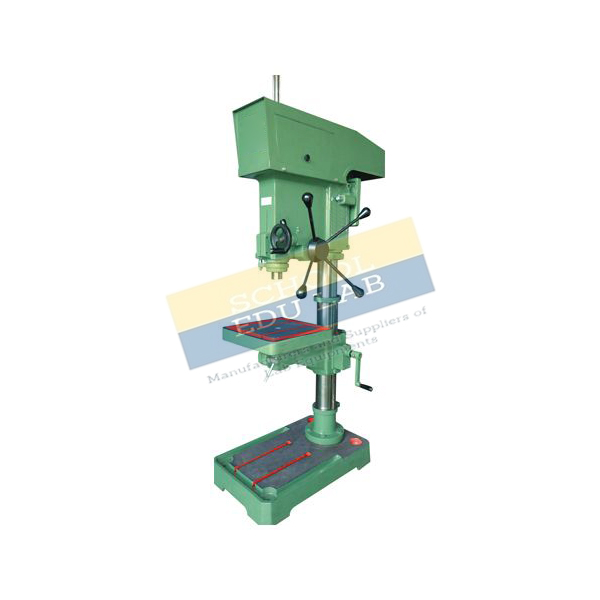

Pillar Drill Machine Manufacturer,Supplier and Exporter
Product Code : SEL-WEAWLM-11542
Quick Answer: This semi-automatic Pillar Drill Machine drills up to 38 mm in steel and 40 mm in cast iron, offers 8 spindle speeds from 80 to 2550 rpm and runs on a 415 V, 3-phase supply.
Last updated: October 2026
Key Features
- Semi-automatic machine type with fine auto feed
- Capacity 19 mm to 50 mm
- Drilling in steel 38 mm, in cast iron 40 mm, boring in steel 60 mm
- Tapping capacity in steel: 25 mm
- 8 spindle speeds, 80 to 2550 rpm
- Manual spindle travel 245 mm, ram diameter 72 mm
Technical Specifications
| Specification | Value |
|---|---|
| Machine type | Semi-automatic |
| Capacity | 19 mm to 50 mm |
| Drilling in steel | 38 mm |
| Drilling in cast iron | 40 mm |
| Boring in steel | 60 mm |
| Tapping capacity in steel | 25 mm |
| Spindle travel (manual) | 245 mm |
| Ram diameter | 72 mm |
| Spindle speeds | 8, range 80 to 2550 rpm |
| Auto feed | Fine feed |
| Power consumption | 2 HP |
| Motor speed | 1440 rpm |
| Power supply | 415 V, 3 phase |
About This Product
A pillar drill holds the spindle on a fixed column above the work table. In a machine-shop training bay this model covers drilling, boring and tapping in steel as well as drilling in cast iron, and it offers both a fine auto feed and 245 mm of manual spindle travel. It needs a 415 V, 3-phase supply. School Educational Instrument can supply the Pillar Drill Machine to schools and colleges in Iran, Turkey, Ecuador, Malawi and Niger.
Frequently Asked Questions
What can the Pillar Drill Machine drill, bore and tap?
It drills 38 mm in steel and 40 mm in cast iron, bores 60 mm in steel and taps up to 25 mm in steel. Overall capacity is 19 mm to 50 mm.
How many spindle speeds does it have?
There are 8 spindle speeds in a range of 80 to 2550 rpm.
What power supply does it need?
It runs on 415 V, 3 phase, with a power consumption of 2 HP.
