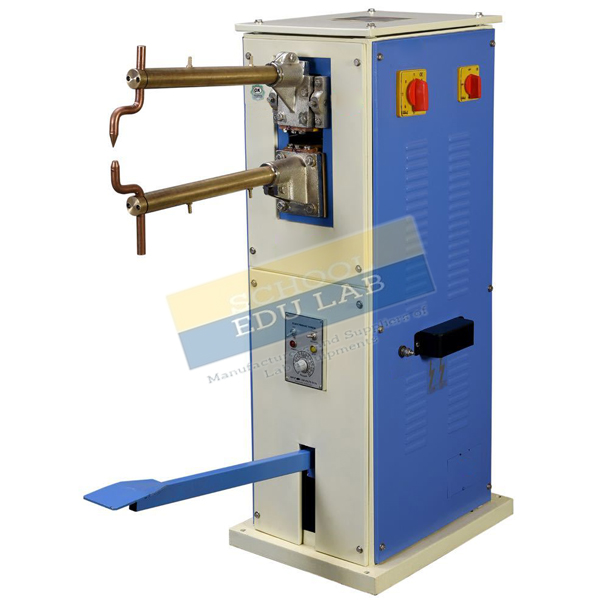

Spot Welding Machine Manufacturer,Supplier and Exporter
Product Code : SEL-WEAWLM-11537
Quick Answer: Available in AC and 3-phase MFDC versions, the Spot Welding Machine has an encapsulated transformer, a secondary current feedback controller and throat depths from 450 mm to 1200 mm.
Last updated: October 2026
Key Features
- Encapsulated transformer
- Cut-off switch for water flow in the transformer, thyristor and inverter
- Low-loss secondary circuit for maximum welding current
- Sturdy ram for high-speed operation
- Secondary current feedback controller
- AC and 3-phase MFDC versions
Technical Specifications
| Specification | Value |
|---|---|
| Rating (AC) | 50 kVA to 340 kVA, 2 phase |
| Rating (MFDC) | 100 kVA, 3 phase |
| Throat depth | 450 mm to 1200 mm |
| Nominal electrode force @ 5.5 bar | 350 kg to 1000 kg |
| Controller | Secondary current feedback |
| Versions | AC, 3-phase MFDC |
About This Product
Spot welding joins overlapping metal sheets by passing current through them between two electrodes at a single point. This machine is built around an encapsulated transformer with a low-loss secondary circuit, and its water-flow cut-off switch covers the transformer, thyristor and inverter. With AC ratings from 50 kVA to 340 kVA and an MFDC option, it suits resistance welding instruction in a fabrication workshop.
Frequently Asked Questions
Which versions of the spot welder are offered?
It is available in AC versions rated 50 kVA to 340 kVA, 2 phase, and a 3-phase MFDC version rated 100 kVA.
What electrode force and throat depth does it have?
Nominal electrode force at 5.5 bar is 350 kg to 1000 kg, and throat depth ranges from 450 mm to 1200 mm.
Related: Welding Equipment and Workshop Lab Machine, Arc Welding Machine, MIG Welding Machine, Electric Shear.
For a quotation on the Spot Welding Machine, contact School Educational Instrument.
