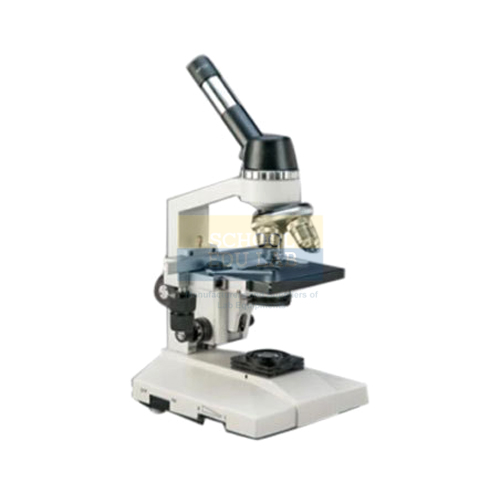

Monocular Inclined Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10845
Quick Answer: This monocular microscope has a head inclined at 45° and rotatable through 360°, colour-coded DIN objectives 4x, 10x, 40x and 100x (oil) and a large 120 x 140 mm stage with a built-in coaxial mechanical stage.
Last updated: October 2026
Key Features
- Monocular head inclined at 45°, rotatable 360°
- Large 120 x 140 mm working stage with built-in low-position coaxial mechanical stage
- Abbe condenser, N.A. 1.25, with iris diaphragm and swing-out filter holder
- Colour-coded DIN objectives: 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25 (oil)
- Separate graduated coarse and fine focusing knobs
- Built-in cool, bright LED illumination, or 6V 20W
Technical Specifications
| Specification | Value |
|---|---|
| Viewing head | Monocular, inclined at 45°, rotatable 360° |
| Stage | 120 x 140 mm, built-in low-position coaxial mechanical stage |
| Condenser | Abbe, N.A. 1.25, iris diaphragm, swing-out filter holder |
| Objectives | DIN, colour coded: 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25 (oil) |
| Focusing | Separate graduated coarse and fine knobs |
| Illumination | Built-in LED, or 6V 20W |
About This Product
The monocular head is inclined at 45° and rotates through 360°, so it can be turned to suit the user at the bench. Each colour-coded DIN objective carries its numerical aperture, from 4x/0.10 to 100x/1.25 (oil), and the Abbe condenser with iris diaphragm adjusts the light. The low-position coaxial mechanical stage moves the slide during practical work in school and college labs. School Educational Instrument can supply the Monocular Inclined Microscope to schools and colleges in Niger, Jordan, Tunisia, Indonesia and Tanzania.
Frequently Asked Questions
What are the objective specifications?
Four colour-coded DIN objectives: 4x/0.10, 10x/0.25, 40x/0.65 (S) and 100x/1.25 for oil. They work with an Abbe condenser of N.A. 1.25 that has an iris diaphragm and a swing-out filter holder.
What illumination options are offered?
Built-in cool, bright LED illumination, or alternatively a 6V 20W lamp.
