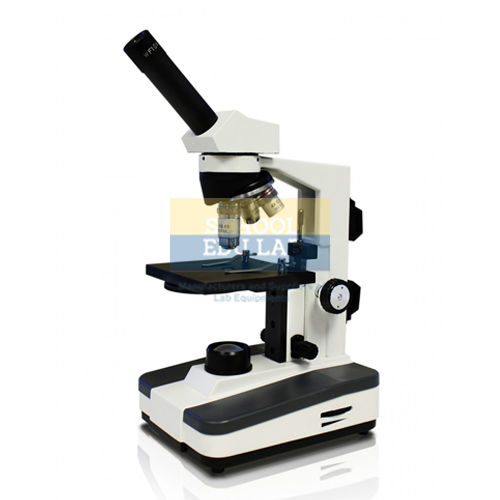

LED Kohler Illumination Monocular Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10901
Quick Answer: Covering 40X to 1000X, this monocular microscope has corded LED lighting with intensity control and an adjustable condenser diaphragm for Kohler illumination, together with a 1.25 N.A. Abbe condenser and double-layer mechanical stage.
Last updated: October 2026
Key Features
- Magnification 40X to 1000X
- Monocular head, 45° inclined, rotating 360°
- Eyepiece with calibrated pointer for marking and measuring points on the slide
- Double-layer, low-profile, ball-bearing mechanical stage with mounted specimen holder
- Rack and pinion 1.25 N.A. Abbe condenser with turn-wheel iris diaphragm and plastic shield
- Corded LED illumination with intensity control and Kohler setup
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular, 45° inclined, 360° rotation |
| Magnification | 40X to 1000X |
| Eyepiece | With calibrated pointer |
| Stage | Double-layer, built-in, low-profile, ball-bearing mechanical stage with specimen holder |
| Condenser | Abbe, 1.25 N.A., rack and pinion |
| Diaphragm | Turn-wheel iris with plastic shield protector |
| Illumination | Corded LED, intensity control, Kohler illumination |
About This Product
Kohler illumination on this monocular body is set with the adjustable condenser diaphragm, while the 1.25 N.A. Abbe condenser and turn-wheel iris diaphragm help resolution and image contrast. The ball-bearing stage moves the slide smoothly, which helps at 1000X where a slight push shifts the field a long way. Students can use the calibrated pointer to mark and measure features before handing over to the next person. The LED Kohler Illumination Monocular Microscope can be exported to the Bahamas, Iran, Guyana, Honduras and Georgia.
Frequently Asked Questions
What magnification range does the LED Kohler Illumination Monocular Microscope cover?
It covers 40X to 1000X with its monocular head, which is inclined at 45° and rotates 360°.
How is the light controlled?
The corded LED has intensity control, and the condenser diaphragm is adjustable for Kohler illumination; a 1.25 N.A. Abbe condenser with iris diaphragm sets contrast.
Related: Microscopes, LED Kohler Illumination Binocular Microscope, Cordless Compound Monocular Microscope, Monocular Laboratory Microscope.
For a quotation on the LED Kohler Illumination Monocular Microscope, contact School Educational Instrument.
