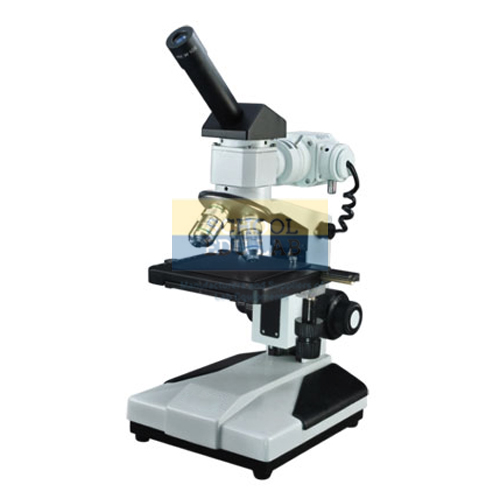

Monocular Upright Metallurgical Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10873
Quick Answer: With a single eyepiece tube inclined at 45 degrees, the Monocular Upright Metallurgical Microscope examines opaque metal samples under a 6V-20W halogen brightfield vertical illuminator, using achromatic DIN M4X, M10X and M40X objectives.
Last updated: October 2026
Key Features
- Monocular head inclined at 45 degrees
- Eyepieces H6X and WF10X (any two)
- Achromatic DIN M4X, M10X and M40X objectives on a quadruple revolving nosepiece
- Co-axial focusing knobs on both sides
- Large co-axial mechanical stage for X-Y movement
- Brightfield vertical illuminator, 6V-20W halogen, with field diaphragm, filter slots and bulb centring mechanism
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular, inclined at 45 degrees |
| Eyepieces | H6X, WF10X (any two) |
| Objectives | Achromatic DIN M4X, M10X, M40X |
| Nosepiece | Quadruple revolving, positive click stops |
| Focusing | Co-axial knobs on both sides |
| Stage | Large co-axial mechanical stage, X-Y movement |
| Illumination | Brightfield vertical illuminator, 6V-20W halogen, field diaphragm, filter slots, bulb centring |
About This Product
This monocular upright metallurgical microscope views metal samples by reflected light from its 6V-20W halogen brightfield vertical illuminator. Achromatic DIN M4X, M10X and M40X objectives sit on a quadruple click-stop nosepiece, and the large co-axial mechanical stage moves the specimen in X and Y. The field diaphragm, filter slots and bulb centring mechanism on the illuminator, with both-side co-axial focusing, suit practical work in college labs. Schools and distributors in Yemen, Mali, Bangladesh, Croatia, Gabon and Malta can order the Monocular Upright Metallurgical Microscope from School Educational Instrument.
Frequently Asked Questions
How does it differ from the binocular upright model?
It has a monocular head inclined at 45 degrees and is supplied with H6X and WF10X eyepieces; the illuminator, objectives, nosepiece and stage are the same as on the binocular model.
What can be adjusted on the illuminator?
The 6V-20W halogen brightfield vertical illuminator has a field diaphragm, filter slots and a bulb centring mechanism.
Related: Microscopes, Binocular Upright Metallurgical Microscope, Inclined Metallurgical Microscope, Metallurgical and Industrial Inspection Microscope.
For a quotation on the Monocular Upright Metallurgical Microscope, contact School Educational Instrument.
