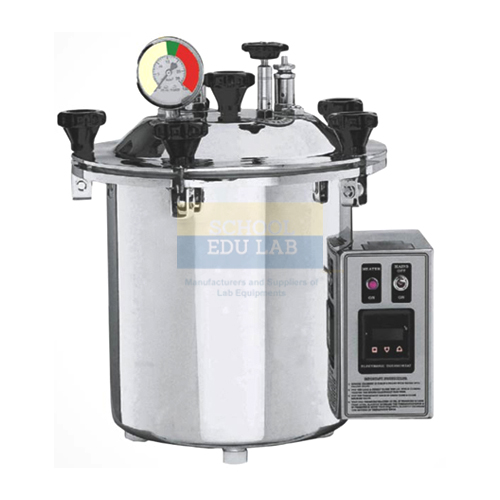

Portable Steam Autoclave (Semi Automatic) Manufacturer,Supplier and Exporter
Withlogo.jpg)
Product Code : SEL-A-11613
Quick Answer: A portable, semi-automatic steam autoclave in fully stainless steel, offered in 6, 12 and 21 litre capacities, with a microprocessor-based PID controller that shows temperature and time on a dual display.
Last updated: October 2026
Key Features
- Fully stainless steel construction with a seamless, die-pressed, deep-drawn chamber
- Microprocessor-based PID digital temperature controller cum timer with dual display
- Heater made of outer stainless steel tubing
- Vacuum breaker to remove air pockets from the chamber
- Calibrated temperature-cum-pressure gauge with colour-coded monitoring
- Food-grade silicone rubber gasket, stainless steel safety valve and over-heat auto shut-down
Technical Specifications
| Specification | Value |
|---|---|
| Capacities | 6, 12 and 21 litres |
| Chamber dimension | 200 x 200 mm (6 L), 250 x 250 mm (12 L), 300 x 300 mm (21 L) |
| Power consumption | 1 kW (6 L), 1.5 kW (12 L), 2 kW (21 L) |
| Operating pressure | 1.2/2.1 kg/cm2 |
| Sterilisation timer | 0-99 minutes |
| Voltage | 230V |
| Gross weight | 13 kg (6 L), 15 kg (12 L), 16 kg or 17 kg (21 L) |
About This Product
Designed to be portable, this semi-automatic autoclave runs on 230V and draws between 1 and 2 kW depending on capacity. Temperature and time are set and read on a microprocessor-based PID controller with dual display, while a calibrated, colour-coded gauge shows temperature and pressure together. A vacuum breaker removes air pockets from the chamber, and the gasket is food-grade silicone rubber.
Frequently Asked Questions
What capacities does this portable steam autoclave come in?
It is offered in 6, 12 and 21 litre capacities, with chamber dimensions of 200 x 200 mm, 250 x 250 mm and 300 x 300 mm. There are two 21 litre versions, with gross weights of 16 kg and 17 kg.
What power supply does it need?
Every model runs on 230V. Power consumption is 1 kW for the 6 litre model, 1.5 kW for the 12 litre model and 2 kW for the 21 litre models.
What is the operating pressure and timer range?
Operating pressure is 1.2/2.1 kg/cm2 on all models, and the timer can be set from 0 to 99 minutes.
Related: Autoclaves, Semi Automatic Double Wall Autoclave, Laboratory Autoclave Semi Autoclave, Table Top Front Loading Autoclave.
For a quotation on the Portable Steam Autoclave (Semi Automatic), contact School Educational Instrument.
