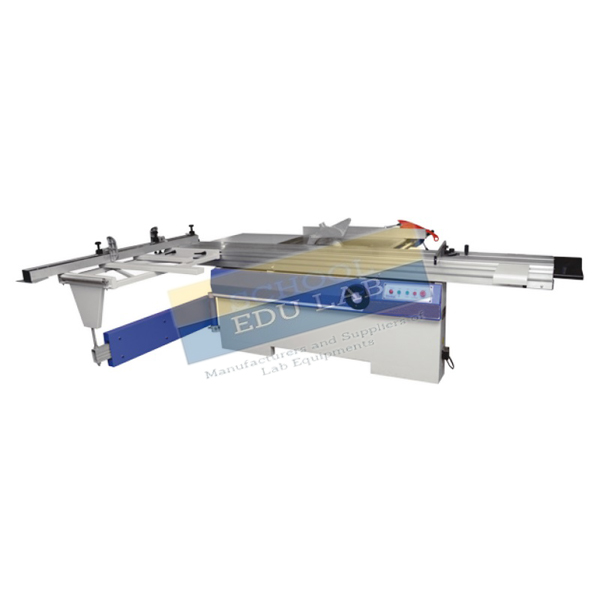

Dimension Saw Machine Manufacturer,Supplier and Exporter
Product Code : SEL-WWPT-11562
Quick Answer: Cutting to size is the job of the Dimension Saw Machine, which has a 3000 x 320 mm sliding table, a 300 mm main blade that tilts 0-45° and a 120 mm scoring saw with its own 1.1 kW motor.
Last updated: October 2026
Key Features
- Heavy-duty saw carriage seated in a large cast-iron cradle
- Hand wheel adjustment of blade height and blade tilt; tilt angle shown by a simple index
- Easy-glide sliding table, 3000 x 320 mm
- Heavy-duty cross-cut fence with quick release
- Scoring saw with manual adjustment and +/- direction adjustment
- Simple overhead saw guard
Technical Specifications
| Specification | Value |
|---|---|
| Sliding table | 3000 x 320 mm |
| Width of cut, blade to rip fence | 1250 mm |
| Saw blade diameter | 300 mm (250-300 mm) |
| Height of cut (300 mm blade) | 80 mm |
| Main saw spindle speed | 4000/6000 rpm |
| Main spindle diameter | 30 mm |
| Saw blade tilt | 0-45° |
| Main motor | 3 kW |
| Scoring saw blade diameter | 120 mm |
| Scoring saw speed | 7000-8000 rpm |
| Scoring motor | 1.1 kW |
About This Product
With a 3000 mm sliding table and up to 1250 mm between the blade and the rip fence, the machine handles long and wide stock in a joinery training workshop. Blade height and tilt are both set by hand wheel, and the index shows the tilt angle so learners can read their setting. The scoring saw runs on a separate 1.1 kW motor at 7000-8000 rpm.
Frequently Asked Questions
What is the maximum height of cut?
With a 300 mm blade the height of cut is 80 mm. Blade diameters of 250-300 mm are accepted.
Does it have a scoring saw?
Yes. A 120 mm scoring saw blade runs at 7000-8000 rpm on a 1.1 kW scoring motor, with manual and +/- direction adjustment.
How wide can it rip?
The width of cut between the saw blade and the rip fence is 1250 mm.
Related: Wood Workshop Portable Tool, Circular Saw Machine, Radial Cross Cutting Machine, Band Saw Machine.
For a quotation on the Dimension Saw Machine, contact School Educational Instrument.
