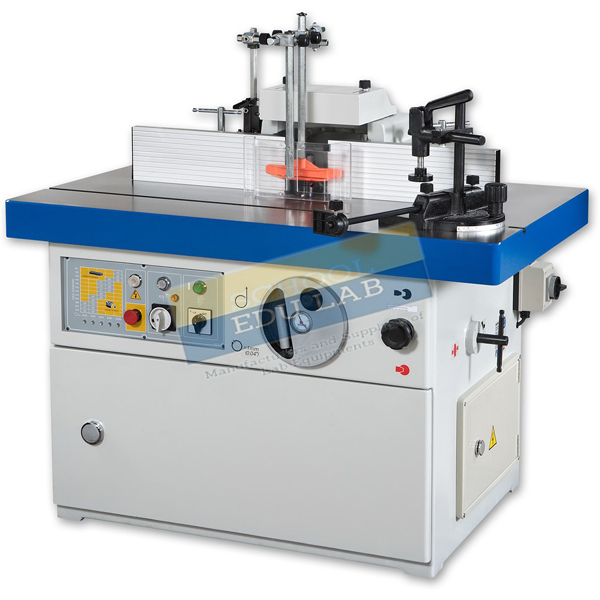

Spindle Moulder Machine Manufacturer,Supplier and Exporter
Product Code : SEL-WWPT-11557
Quick Answer: For shaping profiles on wood, the Spindle Moulder Machine pairs a 30 mm spindle running at 5000 or 7000 rpm with a 1300 x 315 mm sliding table and a 5 HP motor.
Last updated: October 2026
Key Features
- Sliding table: 1300 mm long, 315 mm wide
- Fixed table: 865 x 548 mm
- Spindle diameter 30 mm, speeds 5000 and 7000 rpm
- Spindle up/down movement 100 mm, tilt 45 degree
- Max. moulding block width 100 mm
- Dust extraction port diameter 100 mm
Technical Specifications
| Specification | Value |
|---|---|
| Sliding table length | 1300 mm |
| Sliding table width | 315 mm |
| Fixed table size | 865 x 548 mm |
| Spindle diameter | 30 mm |
| Spindle speed | 5000, 7000 rpm |
| Up/down movement of spindle | 100 mm |
| Spindle tilt | 45 degree |
| Max. moulding block width | 100 mm |
| Dust extraction port diameter | 100 mm |
| Motor power | 5 HP |
| Machine dimensions (L x B x H) | 1550 x 1200 x 1200 mm |
| Weight | 400 kg |
About This Product
A spindle moulder spins a cutter block on a vertical spindle to cut mouldings and profiles in timber. On this machine the spindle can be raised or lowered by 100 mm and tilted to 45 degrees, the sliding table carries the work past the cutter, and a 100 mm dust extraction port is provided. It weighs 400 kg and runs on a 5 HP motor. The Spindle Moulder Machine can be exported to South Africa, Seychelles, Japan, Benin and the Comoros.
Frequently Asked Questions
Can the spindle be tilted?
Yes. The spindle tilts to 45 degrees and has 100 mm of up and down movement.
What spindle speeds are available?
Two speeds: 5000 and 7000 rpm, on a 30 mm diameter spindle driven by a 5 HP motor.
Related: Wood Workshop Portable Tool, Jointer Planer, Combination Surface Planer and Thicknesser, Chisel Mortise Machine.
For a quotation on the Spindle Moulder Machine, contact School Educational Instrument.
