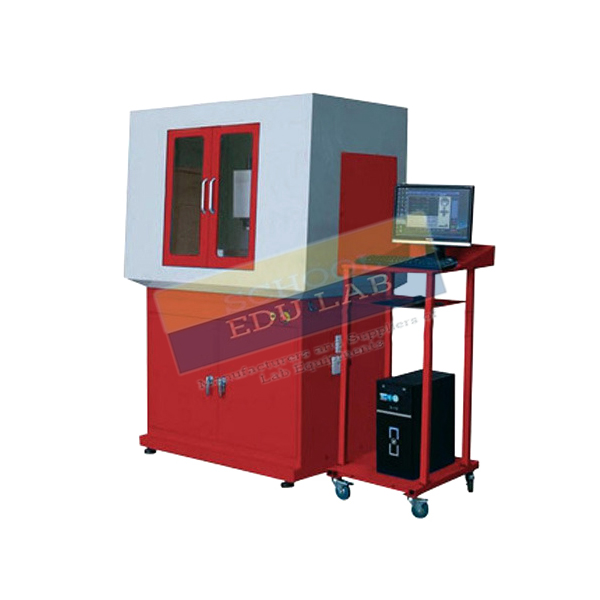

CNC Milling Machine Floor Model Manufacturer,Supplier and Exporter
Product Code : SEL-CTM-11595
Quick Answer: This floor-standing CNC milling machine carries a 1 kW spindle with a 100–5000 rpm range and a 500 x 160 mm worktable, giving trainees X, Y and Z axis travel for CNC milling and drilling practice.
Last updated: October 2026
Key Features
- 1 kW spindle motor, 100–5000 rpm
- Worktable 500 x 160 mm with 3 T-slots of 12 mm
- Travel X 280 mm, Y 120 mm, Z 270 mm
- Drilling capacity 16 mm
- Position precision 0.015 mm
- Worktable load up to 35 kg
Technical Specifications
| Specification | Value |
|---|---|
| Drilling capacity | 16 mm |
| Worktable size | 500 x 160 mm |
| T-slots | 3, 12 mm |
| Max. worktable load | 35 kg |
| Travel X / Y / Z | 280 / 120 / 270 mm |
| Throat | 232 mm |
| Feed motors | X 4 Nm, Y 4 Nm, Z 6 Nm |
| Max. moving speed X/Y/Z | 2 m/min |
| Feeding speed X/Y/Z | 500 mm/min |
| Position precision | 0.015 mm |
| Spindle speed | 100–5000 rpm |
| Spindle motor | 1 kW |
| Machine size (L x W x H) | 1280 x 895 x 1845 mm |
| Packing size (L x W x H) | 1420 x 1060 x 2035 mm |
| Gross / net weight | 570 / 510 kg |
About This Product
Set beside the table model in this range, the floor model has a larger worktable, longer travel on each axis and a 1 kW spindle, and it weighs 510 kg net. All three axes move at up to 2 m/min with a feeding speed of 500 mm/min, and position precision is 0.015 mm. These figures make it a practical piece of TVET lab equipment for CNC milling and drilling practice in engineering workshops. The CNC Milling Machine Floor Model can be exported to Saint Vincent and the Grenadines, the Solomon Islands, Qatar, Bangladesh and Zimbabwe.
Frequently Asked Questions
How much travel does each axis have?
X travel is 280 mm, Y travel 120 mm and Z travel 270 mm. All three axes move at up to 2 m/min, with a feeding speed of 500 mm/min.
How large and heavy is the floor model?
It measures 1280 x 895 x 1845 mm (L x W x H) and weighs 510 kg net, 570 kg gross, so it stands on the workshop floor rather than on a bench.
Related: CNC Trainer Machine, CNC Milling Machine Table Model, CNC Lathe Machine Floor Model, CNC Milling Controller.
For a quotation on the CNC Milling Machine Floor Model, contact School Educational Instrument.
