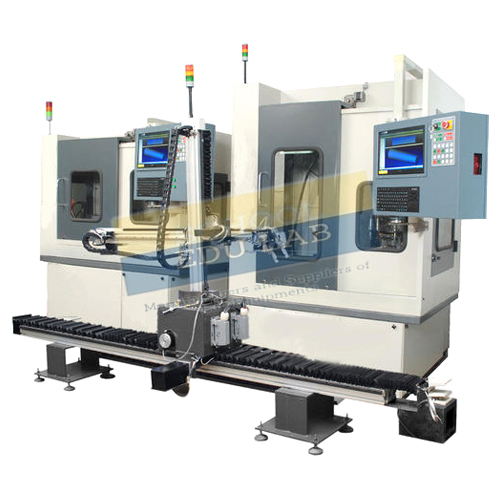

Flexible Manufacturing System Manufacturer,Supplier and Exporter
Product Code : SEL-CTM-11621
Quick Answer: Specified around a PLC-based CNC turning unit, the Flexible Manufacturing System has a 45 degree slant bed, servo motors with servo drives, a 125 mm hydraulic chuck and an automatic 8-station turret.
Last updated: October 2026
Key Features
- PLC-based control system
- Servo motors with servo drives
- 45 degree slant bed, 100 mm centre height
- 125 mm hydraulic chuck
- 2 HP AC servo spindle, 100 to 3000 rpm with VFD
- Automatic 8-station turret; automatic coolant and lubrication
Technical Specifications
| Specification | Value |
|---|---|
| Control system | PLC based |
| Axis motors and drives | Servo motors with servo drives |
| Chuck | Hydraulic, 125 mm |
| Bed type | 45 degree slant |
| Centre height | 100 mm |
| Feed rate | 0 to 10,000 mm/min |
| Resolution X / Z | 0.001 mm |
| Positional accuracy | 0.005 mm |
| Repeatability | 0.010 mm |
| Spindle | 2 HP AC servo, 100 to 3000 rpm with VFD |
| Axis travel X / Z | 80 / 280 mm |
| Tool changer | Automatic 8-station turret |
| Accessories | Automatic coolant, automatic lubrication |
About This Product
Servo motors drive the X and Z axes of this unit, with a resolution of 0.001 mm, positional accuracy of 0.005 mm and repeatability of 0.010 mm. Feed rates run from 0 to 10,000 mm/min, and coolant and lubrication are both automatic. For engineering and vocational courses it gives students a servo-driven CNC turning set-up with a slant bed and turret to study and operate. The Flexible Manufacturing System can be packed for export to Chile, Belgium, Mozambique, Sierra Leone, Armenia and Namibia.
Frequently Asked Questions
What spindle and chuck does it use?
A 2 HP AC servo spindle running from 100 to 3000 rpm with VFD, and a 125 mm hydraulic chuck.
How far do the axes travel?
X-axis travel is 80 mm and Z-axis travel 280 mm, with feed rates from 0 to 10,000 mm/min.
Related: CNC Trainer Machine, CNC Lathe Trainer Stepper, Robotic Arm, PLC and HMI Training Kit.
For a quotation on the Flexible Manufacturing System, contact School Educational Instrument.
