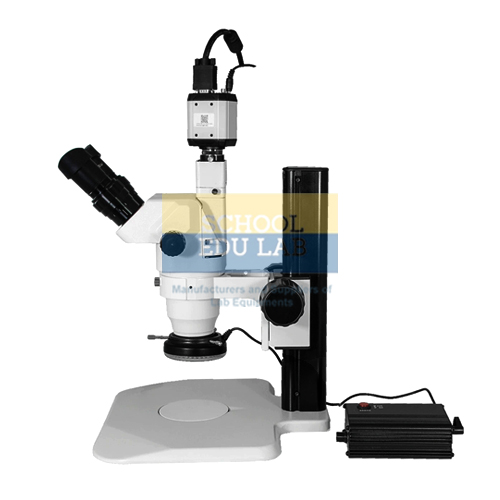

Super Widefield Digital Zoom Stereo Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10907
Quick Answer: Built as an LED stereo inspection microscope, this trinocular model offers 3.5X to 90X super widefield zoom, a 10MP digital camera with measuring software, a 144-LED ring light and a 200 mm working distance.
Last updated: October 2026
Key Features
- 3.5X to 90X magnification; zoom range 0.7X to 4.5X with 0.5X and 2.0X Barlow lenses
- 45° inclined trinocular head rotating 360°
- WH10X/20 mm super widefield high-eyepoint eyepieces with +/- 5 dioptre adjustment
- Digital camera, 10MP, with editing and measuring software for Windows
- Variable 144-LED ring light with separate control box
- Working distance of 200 mm on an all-metal pillar stand
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | 3.5X to 90X |
| Zoom range | 0.7X to 4.5X |
| Barlow lenses | 0.5X and 2.0X |
| Head | Trinocular, 45° inclined, 360° rotatable |
| Eyepieces | WH10X/20 mm super widefield, high eyepoint |
| Dioptre adjustment | +/- 5 |
| Interpupillary distance | 55 to 75 mm |
| Field of view | 65 mm |
| Working distance | 200 mm |
| Camera | 10MP digital, with editing and measuring software for Windows |
| Illumination | 144-LED ring light with separate control box |
| Power input | 110-240V, 50-60 Hz, automatic switching |
| Stand | All-metal pillar, 254 x 200 x 275 mm; round plate 95 mm diameter |
About This Product
A zoom stereo microscope lets a specimen be viewed in three dimensions while magnification is changed smoothly. The long 200 mm working distance leaves room to handle the specimen, and the variable ring light surrounds the objective for even lighting. Fitting the 0.5X or 2.0X Barlow lens halves or doubles the zoom magnification, and the camera software allows editing and measuring of captured images on Windows.
Frequently Asked Questions
How is the 3.5X to 90X range reached?
The zoom body covers 0.7X to 4.5X; with the WH10X eyepieces and the 0.5X or 2.0X Barlow lens fitted, total magnification spans 3.5X to 90X.
What camera does the microscope use?
A 10MP digital camera with advanced editing and measuring software for Windows.
What power supply does it need?
Power input is 110-240V, 50-60 Hz with automatic switching, for the 144-LED ring light and its separate control box.
Related: Microscopes, Digital Wide Field Stereo Zoom Trinocular Microscope, LCD Touch Pad Stereo Zoom Trinocular Microscope, Binocular Stereo Zoom Microscope.
For a quotation on the Super Widefield Digital Zoom Stereo Microscope, contact School Educational Instrument.
