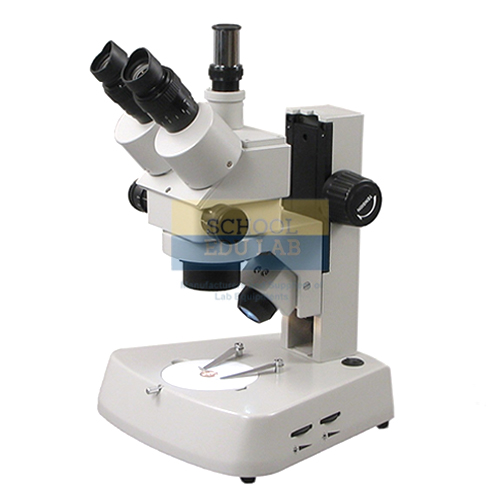

Dual Power Trinocular Stereo Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10917
Quick Answer: Available in 10X and 20X, 10X and 30X, or 20X and 40X versions, this dual power trinocular stereo microscope has a 45° head that takes a digital eyepiece camera, with halogen top light and fluorescent bottom light.
Last updated: October 2026
Key Features
- Choice of magnification pairs: 10X and 20X, 10X and 30X, or 20X and 40X, switched by rotating the turret
- Paired 10X wide-field eyepieces that can be locked with a setscrew; WF15X and WF20X optional
- Trinocular head, 45° inclined and 360° rotatable, for a digital eyepiece camera
- Interpupillary distance 55 mm to 75 mm with dioptre adjustment on the left tube
- Heavy-duty rack and pinion focusing with slip clutch, tension adjustment and 90 mm focus range
- Halogen top light and fluorescent bottom light, each with separate intensity control
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | 10X & 20X; 10X & 30X; or 20X & 40X |
| Objective pairs | 1X & 2X, 1X & 3X, or 2X & 4X on turret |
| Eyepieces | Paired 10X wide-field, lockable; WF15X and WF20X optional |
| Viewing head | Trinocular, 45° inclined, 360° rotatable |
| Interpupillary distance | 55 mm to 75 mm, synchronised |
| Working distance | 80 mm |
| Focusing | Rack and pinion, slip clutch, tension adjustment, 90 mm range |
| Stage plates | 75 mm frosted glass and 75 mm reversible black/white; spring-loaded clips |
| Illumination | Adjustable halogen top light; fluorescent bottom light; separate intensity controls |
| Size | 14 inches high; base 7 x 8.75 inches |
About This Product
A choice of magnification pairs lets the microscope be matched to the work, with the turret rotated to switch between the two powers. Lockable eyepieces stop students removing them. The trinocular head can be connected with a digital eyepiece camera, and the halogen top light and fluorescent bottom light can be used separately or together, each with its own intensity control. Schools and distributors in Sri Lanka, Belarus, Turkey, Kazakhstan, Vietnam and Eswatini can order the Dual Power Trinocular Stereo Microscope from School Educational Instrument.
Frequently Asked Questions
Which magnification options are offered?
Three pairs are offered: 10X and 20X, 10X and 30X, or 20X and 40X. The objective pair on the turret is rotated to switch between the two powers.
Can the eyepieces be secured?
Yes. The paired 10X wide-field eyepieces can be locked on with a setscrew so students cannot remove them.
What lighting does it have?
A diagonally adjustable halogen top light and a fluorescent transmitted bottom light, used separately or together, each with continuous brightness control.
Related: Microscopes, Dual Power Binocular Stereo Microscope, Tri Power LED Stereo Microscope, Digital Eyepiece Camera.
For a quotation on the Dual Power Trinocular Stereo Microscope, contact School Educational Instrument.
