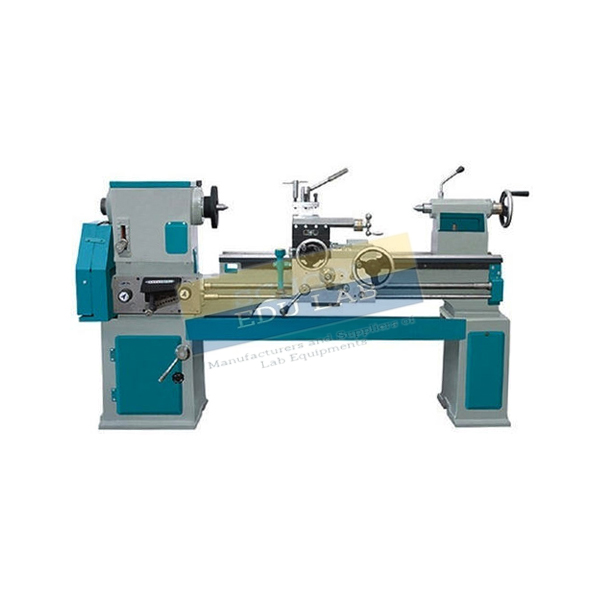

Center Lathe Machine Manufacturer,Supplier and Exporter
Product Code : SEL-MMTM-11807
Quick Answer: Built in a range of sizes, the Center Lathe Machine offers a swing over bed of 750 to 900 mm, 850 to 10750 mm between centres and 8 spindle speeds from 30 to 325 rpm, driven by a 5 to 7.5 HP motor.
Last updated: October 2026
Key Features
- Swing over bed 750 to 900 mm; swing over gap 1000 to 1150 mm
- Admits 850 to 10750 mm between centres; bed length 2100 to 12000 mm
- Spindle bore 75 to 200 mm; MT-5 spindle sleeve taper bore
- 8 speeds, 30 to 325 rpm
- 13 metric threads (1 to 6 mm pitch) and 19 inch threads (2 to 24 TPI)
- 5 to 7.5 HP motor, 1440 rpm, 440 V, AC 3 phase
Technical Specifications
| Specification | Value |
|---|---|
| Swing over bed | 750 to 900 mm |
| Swing over cross slide | 450 to 600 mm |
| Swing over gap | 1000 to 1150 mm |
| Length of gap in bed | 250 mm |
| Admit between centres | 850 to 10750 mm |
| Height of centre | 375 to 450 mm |
| Bed length / width | 2100 to 12000 mm / 450 mm |
| Spindle bore | 75 to 200 mm |
| Spindle sleeve taper bore | MT-5 |
| Taper bore in centre sleeve | MT-5 |
| Speeds | 8, from 30 to 325 rpm |
| Metric threads | 13, 1 to 6 mm pitch |
| Inch threads | 19, 2 to 24 TPI |
| Lead screw | 50 mm diameter, 2 TPI |
| Cross slide travel | 375 to 450 mm |
| Compound slide travel | 175 mm |
| Ram travel | 225 mm |
| Motor | 5 to 7.5 HP, 1440 rpm, 440 V, AC 3 phase |
About This Product
A centre lathe turns, faces and cuts screw threads on work held between centres or in a chuck, which makes it a standard machine in metal manufacturing training. This one comes with a steady rest, follow rest, chuck plate, face plate, 2 dead centres, a change gear set, tool post spanner and switch stand as standard. A rear tool post, true or dog chuck, coolant pump with fittings, machine lamp and extra centre height are among the options.
Frequently Asked Questions
What accessories come as standard?
A steady rest, follow rest, chuck plate, spindle sleeve, face plate, 2 dead centres, change gear set, tool post spanner and switch stand.
What thread ranges does the lathe cover?
13 metric threads from 1 to 6 mm pitch and 19 inch threads from 2 to 24 TPI, with a 50 mm diameter lead screw.
Related: Metal Manufacturing Training Machine, Universal Milling Machine, Parting Tool Holder, Knurling Tool Holder.
For a quotation on the Center Lathe Machine, contact School Educational Instrument.
