Saw Manufacturer,Supplier and Exporter
Product Code : SEL-WT-11495

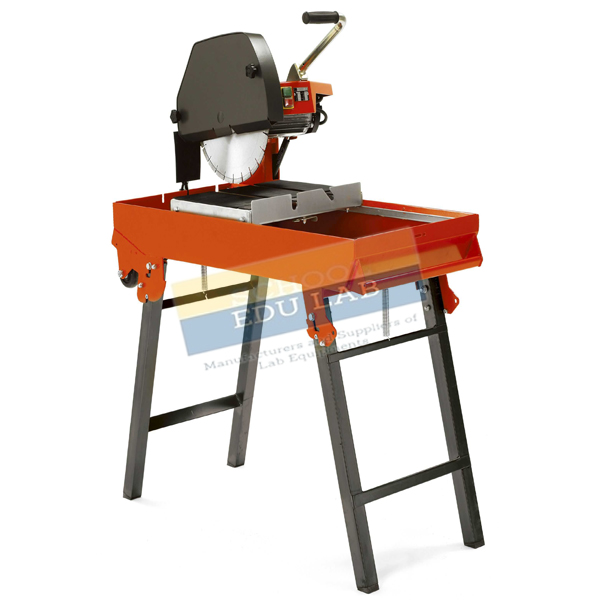

Quick Answer: This saw cuts small to medium sized building materials such as bricks, blocks, rocks, tiles and slabs, taking discs up to 450 mm and cutting up to 120 mm thick.
Last updated: October 2026
Key Features
- Takes discs up to 450 mm; 350, 400 and 450 mm diameter diamond blades as accessories
- Max cutting length 500 mm and max cutting thickness 120 mm
- Sliding cutting table/carriage, 570 x 430 mm, with 550 mm translation
- Cutting angle device and a beam for adjusting cutting height
- Water cooling circulation pump
- Pedal control and emergency switch
Technical Specifications
| Specification | Value |
|---|---|
| Disc size | Up to 450 mm |
| Max cutting length | 500 mm |
| Max cutting thickness | 120 mm |
| Max rotation of disc | 2800 rpm |
| Sliding table/carriage | 570 x 430 mm (550 mm translation) |
| Dimensions | 1220 x 700 x 1360 mm |
| Electrical supply | 220-240V AC, 50 Hz, 1 ph |
| Rated power | 2200W |
| Weight | 130 kg |
| Accessories | 350 mm, 400 mm and 450 mm diameter diamond blades |
About This Product
Building-trades training often calls for bricks, blocks, tiles and slabs to be cut to size, and this saw handles such materials up to 120 mm thick. The work rests on a sliding table with 550 mm of travel, a cutting angle device allows angled cuts, and a beam adjusts the cutting height. A circulation pump supplies cooling water, and the saw is fitted with pedal control and an emergency switch.
Frequently Asked Questions
What materials can this saw cut?
Small to medium sized building materials, for example bricks, blocks, rocks, tiles and slabs, up to a maximum cutting thickness of 120 mm and a maximum cutting length of 500 mm.
Which blades can be used?
It takes discs up to 450 mm, and 350 mm, 400 mm and 450 mm diameter diamond blades are offered as accessories.
What power supply does the saw need?
220-240V AC, 50 Hz, single phase, with a rated power of 2200W. The disc turns at up to 2800 rpm.
