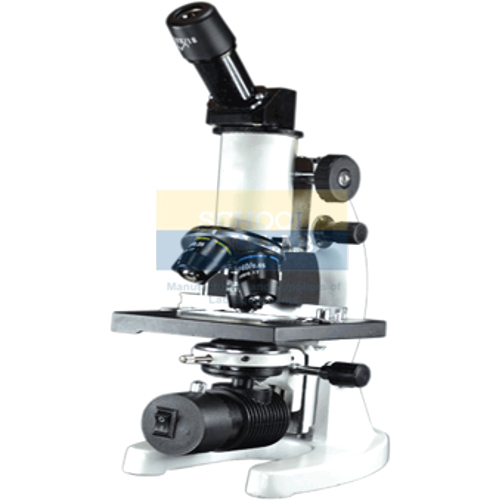

Pathological and Medical Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10844
Quick Answer: Fitted with four achromatic objectives from 4x to 100x, this monocular microscope has a 45° viewing head, a WF 10x-18mm eyepiece and a 120 x 120 mm mechanical stage with XY movement.
Last updated: October 2026
Key Features
- Monocular viewing head inclined at 45°
- WF 10x-18mm eyepiece
- Upright quadruple nosepiece with achromatic 4x, 10x, 40x (SL) and 100x (SL) objectives
- Mechanical stage, 120 x 120 mm, with XY movement
- Movable Abbe condenser, N.A. 1.25, with iris diaphragm
- Plano-concave mirror and LED lamp, with a blue filter
Technical Specifications
| Specification | Value |
|---|---|
| Viewing head | Monocular, 45° |
| Eyepiece | WF 10x-18mm |
| Nosepiece | Quadruple, upright |
| Objectives | Achromatic 4x, 10x, 40x (SL), 100x (SL) |
| Mechanical stage | 120 x 120 mm, XY movement |
| Focusing | Separate coarse and fine movement |
| Condenser | Movable Abbe, N.A. 1.25, iris diaphragm |
| Light source | Plano-concave mirror, LED lamp |
| Filter | Blue |
About This Product
With objectives up to 100x (SL), this monocular microscope suits slide study in college and teaching laboratories. The movable Abbe condenser and its iris diaphragm let the user adjust the light for each objective, while the XY mechanical stage moves the slide across the field. Having both a plano-concave mirror and an LED lamp gives a choice of light source, used with a blue filter.
Frequently Asked Questions
Which objectives are fitted?
Four achromatic objectives on an upright quadruple nosepiece: 4x, 10x, 40x (SL) and 100x (SL). They are used with a WF 10x-18mm eyepiece on a 45° monocular head.
What light sources does it use?
It has both a plano-concave mirror and an LED lamp, together with a movable Abbe condenser (N.A. 1.25) with iris diaphragm and a blue filter.
Related: Microscopes, Student Medical Microscope, Achromatic Objectives, Mechanical Stage.
For a quotation on the Pathological and Medical Microscope, contact School Educational Instrument.
