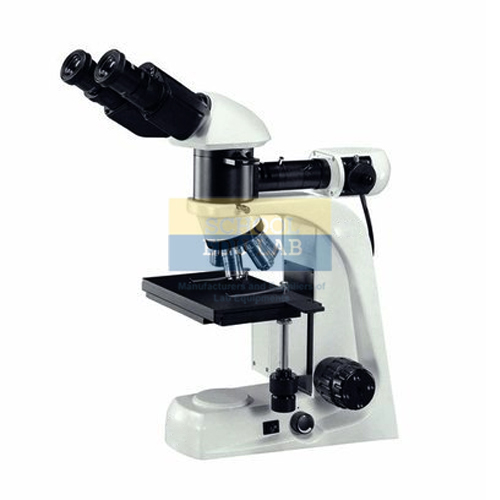

Inclined Metallurgical Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10880
Quick Answer: Metal surfaces can be studied in normal or polarised light with this metallurgical microscope, which has a trinocular head sending 100% of the light to the eyepieces or the top port, plan achromatic long working distance objectives and a 6V 20W halogen lamp.
Last updated: October 2026
Key Features
- Trinocular head, switchable to send 100% of light to the binocular eyepieces or the top port
- Switchable between normal and polarised observation
- Plan achromatic long working distance objectives (no cover glass)
- WF10X wide-field eyepieces, view field 18mm
- Coaxial coarse/fine focus with tension adjustment and up stop; fine focus division 0.7 µm
- 6V 20W halogen lamp with adjustable brightness; large-range mechanical stage with quick and slow movement
Technical Specifications
| Specification | Value |
|---|---|
| Head | Trinocular, 100% light to eyepieces or top port |
| Observation | Normal or polarised |
| Objectives | Plan achromatic, long working distance, no cover glass |
| Eyepieces | WF10X, view field 18mm (pair) |
| Focusing | Coaxial coarse/fine, tension adjustable, up stop |
| Fine focus division | 0.7 µm |
| Illumination | 6V 20W halogen, adjustable brightness |
| Stage | Mechanical, large move range, quick and slow movement |
About This Product
This inclined metallurgical microscope uses plan achromatic long working distance objectives made for use without a cover glass, with WF10X wide-field eyepieces of 18mm view field. The trinocular head switches between normal and polarised observation and can send 100% of the light to the binocular eyepieces or the top port. Coaxial focus with a 0.7 µm fine division and a large-range mechanical stage with quick and slow movement suit practical work in college labs.
Frequently Asked Questions
Where does the trinocular head send the light?
It can send 100% of the light to the binocular eyepieces or to the top port, and the microscope can switch between normal and polarised observation.
How fine is the focusing?
Focusing is coaxial coarse and fine with tension adjustment and an up stop; the minimum division of the fine focus is 0.7 µm.
