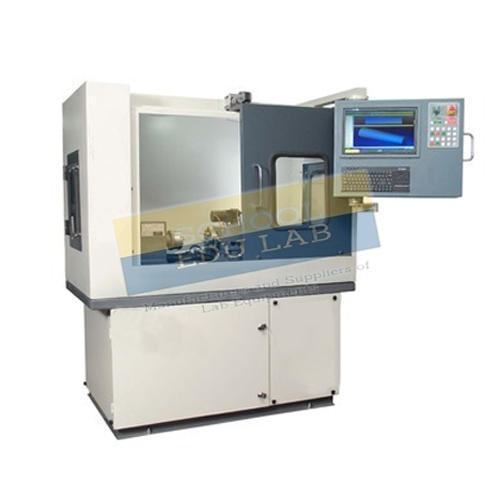

CNC Lathe Trainer Stepper Manufacturer,Supplier and Exporter
Product Code : SEL-CTM-11607
Quick Answer: Driven by stepper motors on its X and Z axes, the CNC Lathe Trainer Stepper turns work up to 40 mm in diameter and 250 mm long, with a 2 HP AC servo spindle running at 100 to 4000 rpm.
Last updated: October 2026
Key Features
- Flat or 45 degree slant bed
- Stepper motors with stepper drives on X and Z
- 2 HP AC servo spindle motor, 100 to 4000 rpm with VFD
- Automatic turret with 4 or 8 stations
- PLC-based control system with emulated or standard keyboard
- FMS compatibility provided
Technical Specifications
| Specification | Value |
|---|---|
| Bed type | Flat / 45 degree slant |
| Chuck | 100 mm dia., hydraulic / manual |
| Max. turning diameter | 40 mm |
| Max. turning length | 250 mm |
| Centre height | 100 mm |
| Swing over bed / cross slide | 200 / 60 mm |
| Distance between centres | 320 mm |
| X / Z travel | 100 / 300 mm |
| Ball screw X / Z | Ø25 x 5, C3 class |
| Feed rate | 0 to 1,200 mm/min |
| Rapid travel | 1,200 mm/min |
| Positioning / resolution | 0.010 mm / 0.010 mm |
| Repeatability | ±0.015 mm |
| Spindle motor | AC servo, 2 HP |
| Spindle speed | 100 to 4000 rpm with VFD |
| Spindle nose taper | A 2-3 / MT 3 |
| C axis | Optional, with brake |
| Turret | Automatic, 4 / 8 stations |
| Tool cross section | 12 x 12 mm |
| Tailstock | Base stroke 170 mm, hydraulic / manual actuation |
| Lubrication / coolant | Automatic / automatic |
| Control system | PLC based |
| Keyboard | Emulated / standard |
| Dimensions | 1480 x 800 x 1200 mm |
| Power supply | 230 V, single phase |
About This Product
The trainer moves its X and Z axes with stepper motors and drives through C3-class ball screws, and its PLC-based control works with an emulated or a standard keyboard. Automatic lubrication and coolant, an automatic 4- or 8-station turret and an optional C axis with brake are part of the specification, and FMS compatibility is provided for linking it into a flexible manufacturing set-up. It runs on a 230 V single-phase supply. School Educational Instrument can supply the CNC Lathe Trainer Stepper to schools and colleges in Panama, Uganda, the Dominican Republic, Brunei and Estonia.
Frequently Asked Questions
What size of work can the trainer turn?
Maximum turning diameter is 40 mm and maximum turning length 250 mm, with 320 mm between centres, 100 mm centre height and a 100 mm chuck.
What spindle and power supply does it use?
The spindle is a 2 HP AC servo motor with VFD speed control from 100 to 4000 rpm, and the machine runs on a 230 V single-phase supply.
