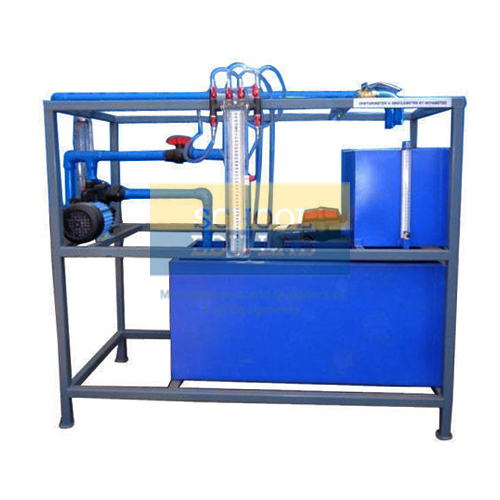

Losses In Pipe Fitting Apparatus Manufacturer,Supplier and Exporter
Product Code : SEL-FMM-11044
Quick Answer: Designed to introduce students to minor losses in pipes, the Losses In Pipe Fitting Apparatus has pressure tapings at each fitting so its head loss characteristics can be read on a 250-0-250 mm acrylic differential manometer.
Last updated: October 2026
Key Features
- Pressure tapings for measuring the head loss characteristics of each fitting
- Manometer bank with manifold and air bleed valve
- Block-type acrylic differential manometer, 250-0-250 mm
- Flow control valve to change discharge
- Measuring tank with transparent piezometer tube and scale
- Circuit and manometer mounted on a support framework
Technical Specifications
| Specification | Value |
|---|---|
| Manometer | Block type acrylic differential, 250-0-250 mm |
| Discharge control | Flow control valve |
| Measuring tank | 295 x 345 x 345 mm |
| Sump tank | 900 x 350 x 350 mm |
About This Product
Minor losses are the head lost at fittings in a pipe circuit, and together with major losses they help engineers work out pumping power and choose materials and fittings for piping networks. Students change the discharge with the control valve, take the head loss across each fitting from the manometer and find the flow from the measuring tank. Circuit and manometer sit together on one support framework. Schools and distributors in Trinidad and Tobago, Sierra Leone, Bhutan, Botswana and Suriname can order the Losses In Pipe Fitting Apparatus from School Educational Instrument.
Frequently Asked Questions
How is the head loss across a fitting measured?
Pressure tapings at each fitting are connected to a manometer bank with a manifold and air bleed valve, and the readings are taken on a block-type acrylic differential manometer of 250-0-250 mm.
How does this differ from the pipe friction apparatus?
This apparatus deals with minor flow losses at pipe fittings, while the Losses In Pipe Friction Apparatus is designed to introduce major flow losses along pipes.
Related: Fluid Mechanics Models, Losses In Pipe Friction Apparatus, Verification of Bernoullis Theorem, Reynolds Apparatus.
For a quotation on the Losses In Pipe Fitting Apparatus, contact School Educational Instrument.
